Special offer: demo SCF Single all electric
- Reduced pricing
- Quick delivery
- Installation onsite
- Full warranty
- Trade-in your existing Bewo saw

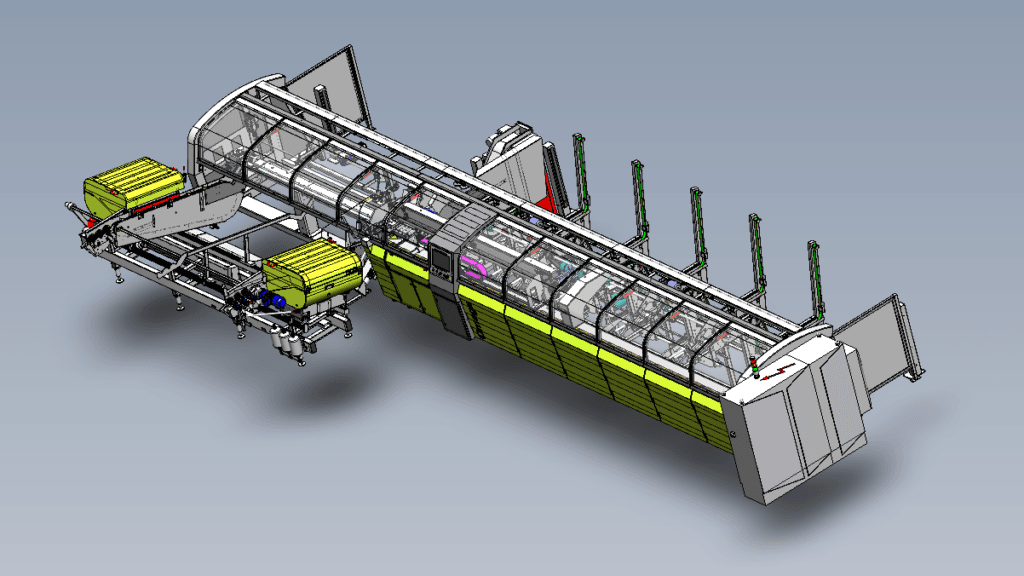

This 2023 was built to develop and demonstrate the capabilities of our full electric version of the Single machine and is now available for sale and can be delivered at short notice and has all relevant options.
In addition, this machine is equipped with our unique universal clamping system with fully electric drive. Extremely accurate, so suitable for tubes with thin walls, but at the same time also very fast.
This new generation machine is equipped with a transport clamp that transports the tube through the machine at a speed of up to 4 m/s.
Because both the carriage clamp and the saw clamp are designed for tubes from 8 to 80 mm, the adjustment of this machine is done in a few moments. The adjustment of this machine within this range is done fully automatically.
- 7 meter automatic bundle loader

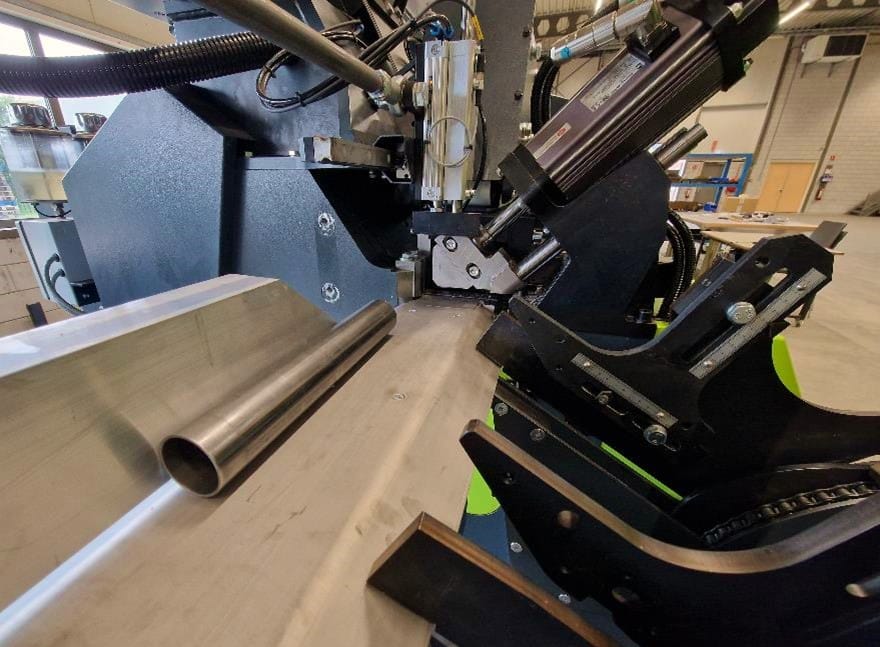

- 3 meter discharge table

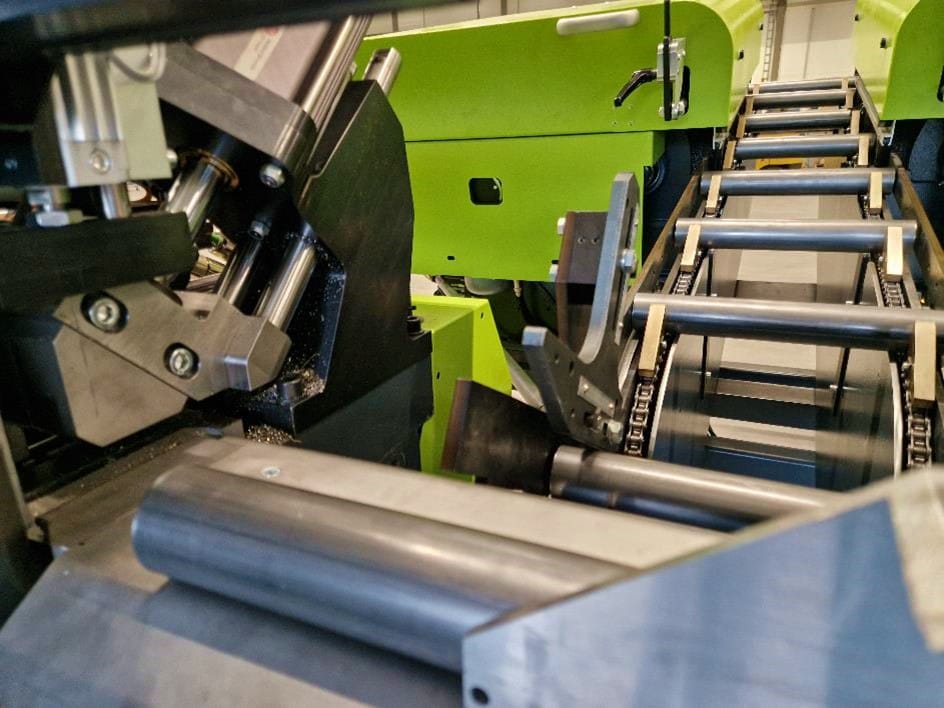

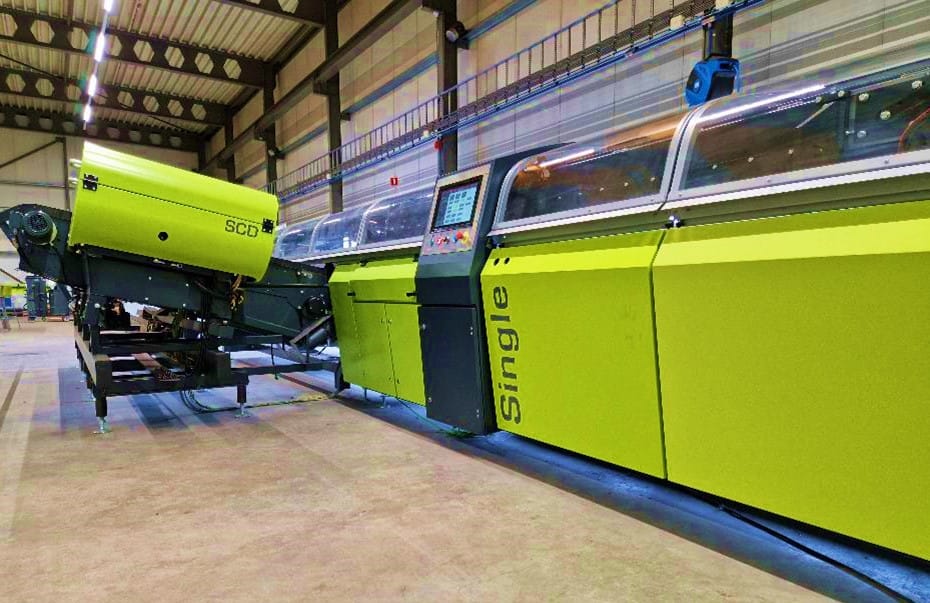

- Optionally with SCD deburrer with synchronization to the cutting machine
- Siemens controls
- Universal clamping single cutting
General specifications
- Year 2023
- Round tube Ø 8 mm – Ø 90 mm
- Square tube 10 x 10 mm – 80 x 80 mm
- Rectangular tube 15 x 10 mm – 85 x 60 mm
- Loader capacity 3.000 kg

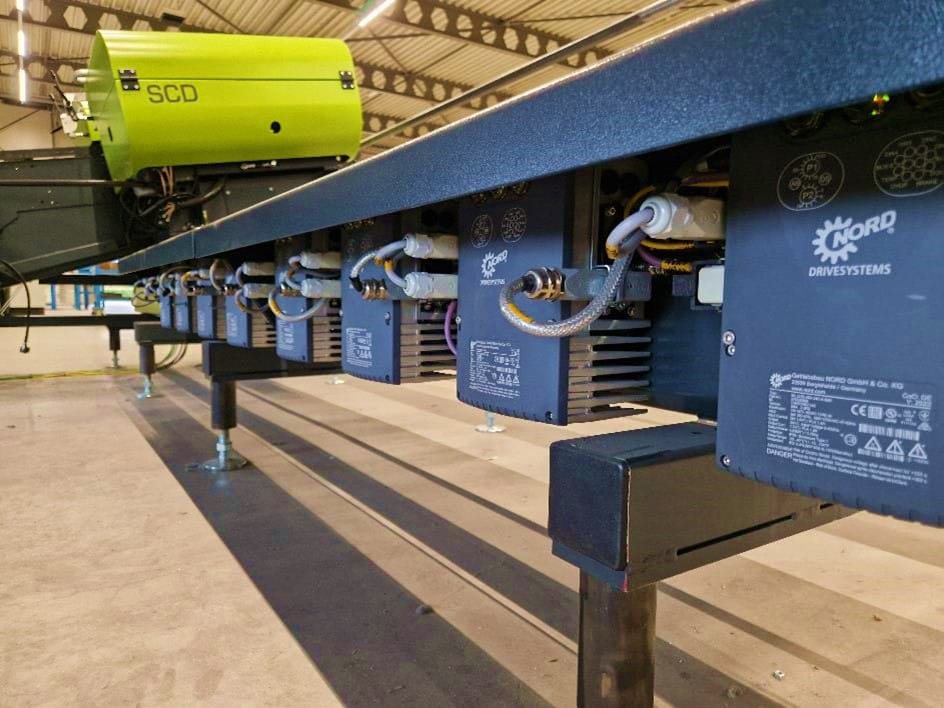

- All servo controled operation
- Up-to 2.400 pcs per hour
- Robot integration prepared
